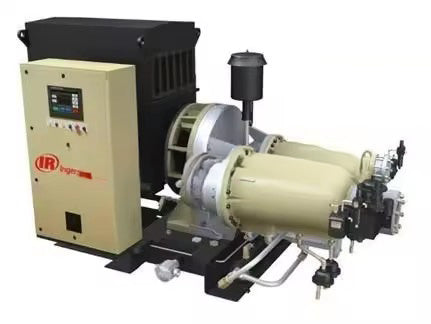

Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
  • Load image into Gallery viewer, Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
  • Load image into Gallery viewer, Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
  • Load image into Gallery viewer, Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
  • Load image into Gallery viewer, Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
  • Load image into Gallery viewer, Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)
  • Load image into Gallery viewer, Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)

Ingersoll-Rand Centrifugal Air Compressor (6000-30, 000 cfm)

Regular price
$250,000.00
Sale price
$250,000.00
Regular price
Sold out
Unit price
per

Customized products, please inquire before placing an order.
Basic Info.
Power Source:
AC Power
Configuration:
Stationary
Type:
Centrifugal
Mute:
Yes
Power Supply(V/pH/Hz):
380\/3/50(Can Be Changed)



Product Description
Compressor

170-850 m3/min (6000-30, 000 cfm)

Our centrifugal compressors are the most efficient and reliable units on the market, and their packaged design makes them easy to install wherever needed. Every component of these compressors is mounted, piped and wired for convenient, single-point air and electrical connection.

Features
Why purchase an Ingersoll Rand centrifugal compressor?
Innovation
We are the world's first certified oil-free centrifugal, which makes us a technology leader in oil-free compressed air. We have the expertise and the unmatched products and service to meet your needs.
Reliability
No matter what the industry or critical application, Ingersoll Rand's centrifugal compressors, set the worldwide standards for reliability, energy efficiency and air quality, while reducing the total life-cycle costs.

Simplicity by Design
Our packaged design makes the compressors easy to install wherever needed, with a single-point air and electrical connection.
A Systematic Approach to Productivity
We bring our customers unmatched experience in designing comprehensive air systems that cover virtually any need.
Global Reach, Local Service
Our worldwide network is ready to support you with innovative and cost-effective service solutions.

Scope of Supply
Complete tested package
Built-in low pressure lubrication system
Complete control, protection and diagnostic system
Mounted intercoolers and aftercooler
Mounted inlet and bypass valves
Mounted condensate system
Model
Rated Pressure (barg / psig)
Nominal Power (kW / hp)
Flow (m3min / cfm)
Length (cm / in)
Width (cm / in)
Height (cm / in)
Weight (kg / lbs)
3CII
3.1-10.3 / 45-150
750-1500 / 1000-2000
170-255 / 6000-9000
526 / 207
262 / 103
223 / 88
11,570 / 25,454
C3000
3.1-10.3 / 45-150
1150-2600 / 1500-3500
255-425 / 9000-15,000
634 / 250
333 / 131
292 / 115
35,000 / 77,000
5CII
3.1-10.3 / 45-150
1500-4500 / 2000-6000
350-850 / 12,500-30,000
740 / 291
310 / 122
330 / 130
43,500 / 95,700
