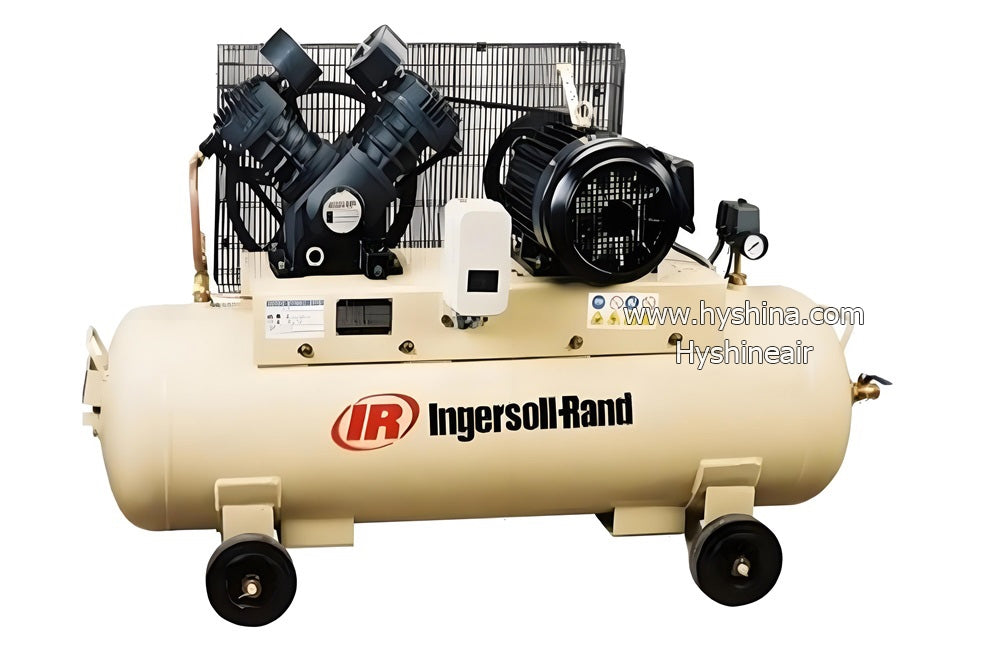

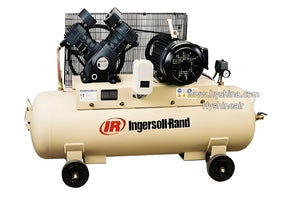

Single stage compression piston air compressor
Description Standard air compressor configuration:
-Heavy-duty cast iron cylinder -High-efficiency motor -Built-in thermal relay (single phase) -1.05SF, TEFC, protection level IP54, insulation level F (three phase) -High-speed and reliable magnetic starter -Direct start (3hp-10hp) -Durable components -Fully enclosed mesh belt guard -Air tank certified by national standards
Model
|
Power
|
Capacity
(0.86Mpa)
|
Speed
|
Power Supply
|
Tank
|
Dimension
|
Weight
|
|
HP
|
kW
|
m3/min
|
R/min
|
V/Ph/Hz/Pole
|
L
|
mm
|
kg
|
|
S1A1S
|
1
|
0.75
|
0.085
|
650
|
220V/1ph/50Hz/2P
|
50
|
866x392x731
|
100
|
S1A1
|
1
|
0.75
|
0.085
|
650
|
380V/3ph/50Hz/4P
|
50
|
866x392x731
|
100
|
S3A2S
|
2.2
|
1.64
|
0.18
|
740
|
220V/1ph/50Hz/2P
|
50
|
866x392x731
|
120
|
S3A2
|
2.2
|
1.64
|
0.19
|
765
|
380V/3ph/50Hz/4P
|
50
|
866x392x731
|
120
|
S3A3S
|
3
|
2.24
|
0.26
|
1060
|
220V/1ph/50Hz/2P
|
50
|
866x392x731
|
125
|
S3A3
|
3
|
2.24
|
0.29
|
1060
|
380V/3ph/50Hz/2P
|
50
|
866x392x731
|
125
|
S5B5
|
5.5
|
4.10
|
0.47
|
985
|
380V/3ph/50Hz/4P
|
80
|
1220X560X920
|
160
|
S10K7
|
7.5
|
5.60
|
0.70
|
730
|
380-415V/3ph/50Hz/4P
|
150
|
1550x600x900
|
230
|
S10K10
|
10
|
7.46
|
0.94
|
960
|
380-415V/3ph/50Hz/4P
|
150
|
1550x600x900
|
230
|
S10K10-AC
|
10
|
7.46
|
0.94
|
960
|
380-415V/3ph/50Hz/4P
|
150
|
1550x600x900
|
230
|
