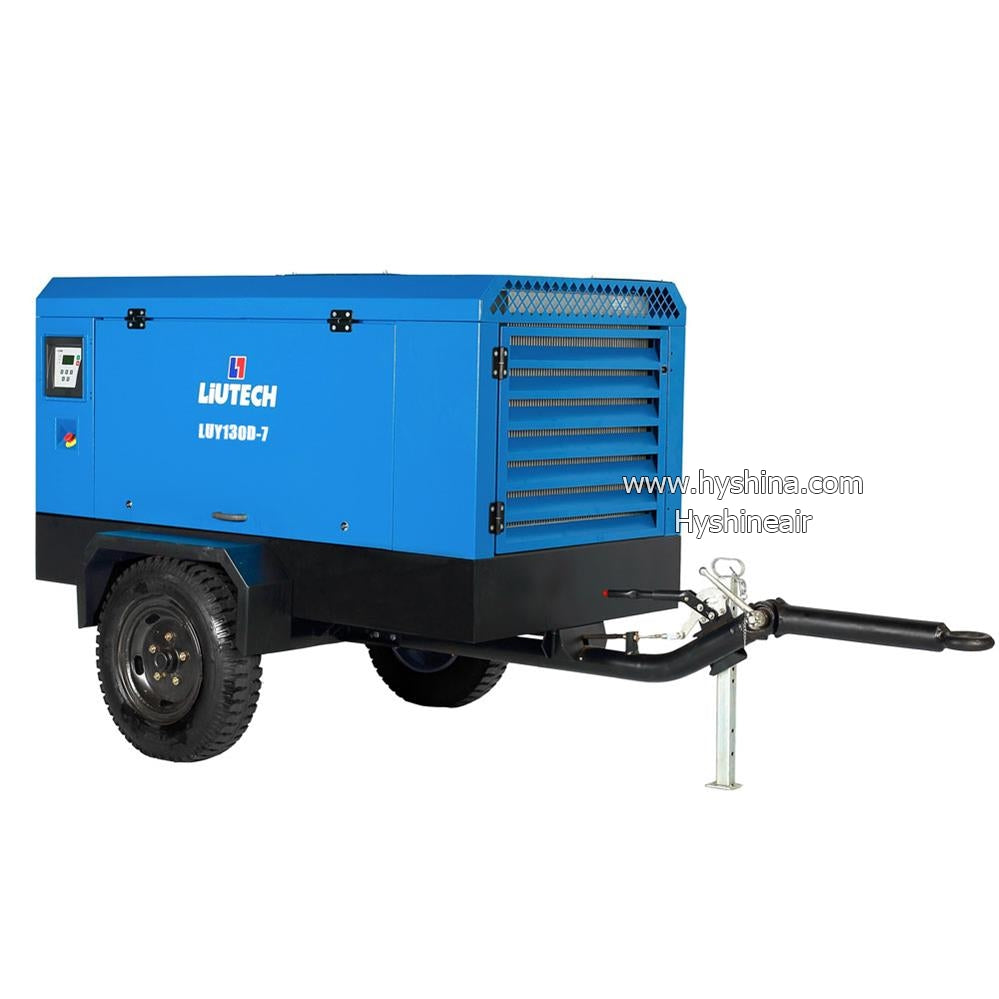

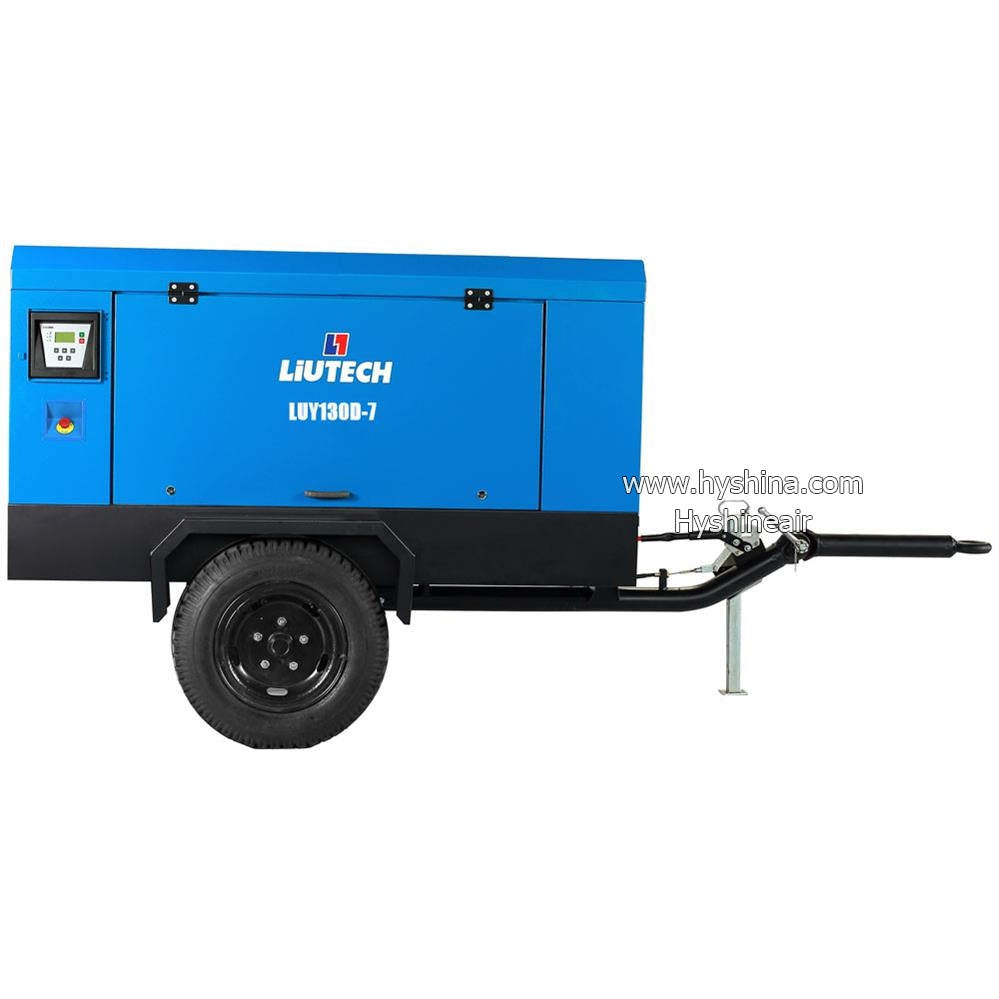

High Performance Portable Air Compressors
Liutech, a part of the Atlas Copco Group, is a trusted brand specializing in high-performance compressed air solutions. With over 20 years of expertise, Liutech offers innovative and reliable products designed to meet the demanding needs of various industries. Known for pioneering screw compressor technology, Liutech is committed to providing efficient, durable, and energy-saving solutions. The brand promise, "We take care of your compressed air," reflects our dedication to delivering top-quality products that ensure optimal performance in the toughest conditions, supporting customers globally.
We support OEM brand customization
|
Model
|
LUY100D-7
|
LUY120D-13
|
LUY130D-7
|
LUY130D-10
|
LUY165D-10
|
|
Working pressure, bar (psi)
|
7 (100)
|
13 (185)
|
7(100)
|
10 (150)
|
10 (150)
|
|
Flow, l/s|cfm|m3/min
|
167|353|10
|
183|388|11
|
217|459|13
|
217|459|13
|
275|582|16.5
|
|
Noise sound level (at 7m distance, dBA )
|
73±3
|
73±3
|
73±3
|
73±3
|
73±3
|
|
Compressor oil capacity, L
|
20
|
28
|
28
|
28
|
55
|
|
Outlet valves, qty x size
|
1xG1 1/2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
|
Motor
|
|
||||
|
Motor power, Kw
|
55
|
90
|
75
|
90
|
110
|
|
Service factor
|
1.15
|
1.15
|
1.15
|
1.15
|
1.15
|
|
Voltage, v
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Power factor
|
0.9
|
0.88
|
0.9
|
0.88
|
0.89
|
|
Motor speed, rpm
|
2970
|
2970
|
2970
|
2970
|
2970
|
|
Starting method
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
|
Protection class
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
|
Dimension & Weight
|
|
||||
|
Box mounted
|
|
||||
|
Length, mm
|
2235
|
2200
|
2200
|
2200
|
2680
|
|
Width, mm
|
1300
|
1170
|
1170
|
1170
|
1660
|
|
Height, mm
|
1623
|
1400
|
1400
|
1400
|
1800
|
|
Weight, kg
|
1520
|
1440
|
1340
|
1440
|
2285
|
|
With undercarriage, adjustable tow bar horizontally
|
|||||
|
Length, mm
|
3651
|
3840
|
3840
|
3840
|
4232
|
|
Width, mm
|
1790
|
1680
|
1680
|
1680
|
1950
|
|
Height, mm
|
1850
|
1740
|
1740
|
1740
|
2170
|
|
Weight, kg
|
1700
|
1640
|
1540
|
1640
|
2590
|
|
Model
|
LUY135D-13
|
LUY203D-7
|
LUY230D-8
|
LUY210D-10
|
LUY165D-14
|
|
Working pressure, bar (psi)
|
13(185)
|
7(100)
|
8(115)
|
10(150)
|
14 (205)
|
|
Flow, l/s|cfm|m3/min
|
225|477|13.5
|
338|717120.3
|
383|812|23
|
350|741|21
|
275|582|16.5
|
|
Noise sound level (at 7m distance, dBA )
|
73±3
|
73±3
|
73±3
|
73±3
|
73±3
|
|
Compressor oil capacity, L
|
55
|
55
|
55
|
55
|
55
|
|
Outlet valves, qty x size
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
|
Motor
|
|
||||
|
Motor power, Kw
|
110
|
110
|
132
|
132
|
132
|
|
Service factor
|
1.15
|
1.15
|
1.15
|
1.15
|
1.15
|
|
Voltage, v
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Power factor
|
0.89
|
0.89
|
0.89
|
0.89
|
0.89
|
|
Motor speed, rpm
|
2970
|
2970
|
2970
|
2970
|
2970
|
|
Starting method
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
|
Protection class
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
|
Dimension & Weight
|
|
||||
|
Box mounted
|
|
||||
|
Length, mm
|
2,680
|
2,680
|
2,680
|
2,680
|
2,680
|
|
Width, mm
|
1,660
|
1,660
|
1,660
|
1,660
|
1,660
|
|
Height, mm
|
1,800
|
1,800
|
1,800
|
1,800
|
1,800
|
|
Weight, kg
|
2,285
|
2,285
|
2,285
|
2,285
|
2,285
|
|
With undercarriage, adjustable tow bar horizontally
|
|||||
|
Length, mm
|
4232
|
4232
|
4232
|
4232
|
4232
|
|
Width, mm
|
1950
|
1950
|
1950
|
1950
|
1950
|
|
Height, mm
|
2170
|
2170
|
2170
|
2170
|
2170
|
|
Weight, kg
|
2590
|
2590
|
2590
|
2590
|
2590
|
|
Model
|
LUY150D-16
|
LUY170D-17
|
LUY250D-10
|
LUY210D-14
|
LUY280D-8.5
|
|
Working pressure, bar (psi)
|
16 (230)
|
17 (250)
|
10(150)
|
14 (205)
|
8.5 (125)
|
|
Flow, l/s|cfm|m3/min
|
250|530|15
|
283|600|17
|
417|883|25
|
350|741|21
|
467|988|28
|
|
Noise sound level (at 7m distance, dBA )
|
73±3
|
75±3
|
75±3
|
75±3
|
75±3
|
|
Compressor oil capacity, L
|
55
|
61
|
65
|
65
|
65
|
|
Outlet valves, qty x size
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
|
Motor
|
|
||||
|
Motor power, Kw
|
132
|
160
|
160
|
160
|
160
|
|
Service factor
|
1.15
|
1.15
|
1.15
|
1.15
|
1.15
|
|
Voltage, v
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Power factor
|
0.89
|
0.89
|
0.89
|
0.89
|
0.89
|
|
Motor speed, rpm
|
2970
|
2970
|
2970
|
2970
|
2970
|
|
Starting method
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
|
Protection class
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
|
Dimension & Weight
|
|
||||
|
Box mounted
|
|
||||
|
Length, mm
|
2,680
|
3,280
|
3,985
|
3,985
|
3,985
|
|
Width, mm
|
1,660
|
1,670
|
1,800
|
1,800
|
1,800
|
|
Height, mm
|
1,800
|
1,870
|
2,200
|
2,200
|
2,200
|
|
Weight, kg
|
2285
|
2850
|
3900
|
3900
|
3900
|
|
With undercarriage, adjustable tow bar horizontally
|
|||||
|
Length, mm
|
4232
|
4550
|
5260
|
5260
|
5260
|
|
Width, mm
|
1950
|
1770
|
1800
|
1800
|
1800
|
|
Height, mm
|
2170
|
2230
|
2590
|
2590
|
2590
|
|
Weight, kg
|
2590
|
3460
|
4500
|
4500
|
4500
|
|
Model
|
LUY280D-10
|
LUY238D-14
|
LUY220D-21
|
LUY250D-21
|
LUY290D-21
|
|
Working pressure, bar (psi)
|
10 (150)
|
14 (205)
|
21 (305)
|
22 (305)
|
23 (305)
|
|
Flow, l/s|cfm|m3/min
|
467|988|28
|
397|840|23.8
|
367|777|22
|
417|883|25
|
483|1024|29
|
|
Noise sound level (at 7m distance, dBA )
|
73±3
|
75±3
|
75±3
|
75±3
|
75±3
|
|
Compressor oil capacity, L
|
65
|
65
|
92
|
92
|
92
|
|
Outlet valves, qty x size
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
1xG2 1xG3/4
|
|
Motor
|
|
||||
|
Motor power, Kw
|
|
|
|
|
|
|
Service factor
|
1.15
|
1.15
|
1.15
|
1.15
|
1.15
|
|
Voltage, v
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
380V/50HZ
|
|
Power factor
|
0.89
|
0.89
|
0.89
|
0.89
|
0.89
|
|
Motor speed, rpm
|
2970
|
2970
|
2970
|
2970
|
2970
|
|
Starting method
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
Star delta
|
|
Protection class
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
IP54/F
|
|
Dimension & Weight
|
|
||||
|
Box mounted
|
|
||||
|
Length, mm
|
3,985
|
3,985
|
3,985
|
3,985
|
3,985
|
|
Width, mm
|
1,800
|
1,800
|
1,800
|
1,800
|
1,800
|
|
Height, mm
|
2,200
|
2,200
|
2,200
|
2,200
|
2,200
|
|
Weight, kg
|
4000
|
4000
|
4100
|
4250
|
4300
|
|
With undercarriage, adjustable tow bar horizontally
|
|||||
|
Length, mm
|
5260
|
5260
|
5260
|
5260
|
5260
|
|
Width, mm
|
1800
|
1800
|
2040
|
2040
|
2040
|
|
Height, mm
|
2590
|
2590
|
2630
|
2630
|
2630
|
|
Weight, kg
|
4600
|
4600
|
4700
|
4850
|
4900
|
Robust And Reliable Liutech Portable Compressors For The Most Demanding Conditions
Demanding conditions need power you can count on. Liutech portable compressors are built to deliver such power. From small units perfect for construction all the way to large, high pressure models used for drilling. Liutech offers a full range to fit your needs. These robust compressors are designed for dependable performance in a wide variety of applications. They’re also easy to maintain and operate, which helps to keep productivity high but minimize operational costs and limit maintenance time.
Atlas Copco designed controller Xc2003
★Multiple parameters are displayed on the home screen to ensure customers have full control of the unit. The built-in safety parameters ensure the compressor is running in safe, good condition. Thanks to the electronic engine technology, the range offers a high automation level, one button start and the simplest operation you could have.
Reliability
★The robust design guarantees longer lifetime and reliability.

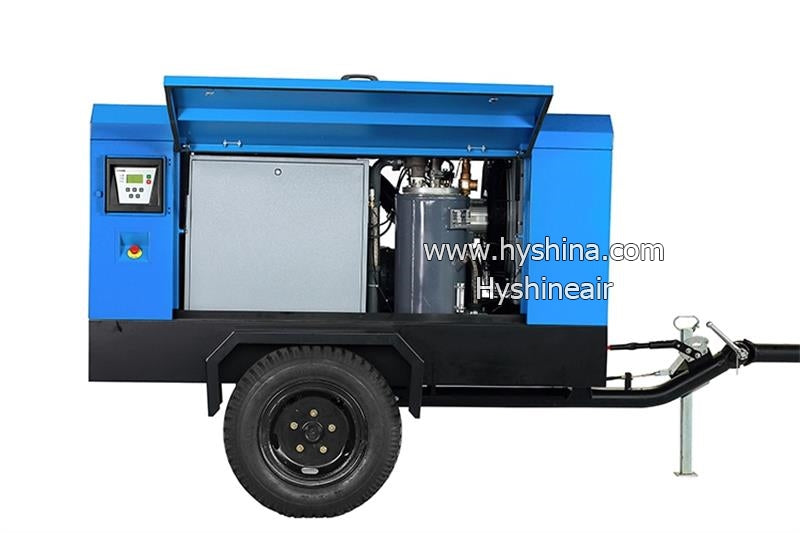

Great service access
★The large service doors give easy access to all consumables, including the filters and separator. We offer long intervals between servicing and reduced time to perform the service.
Fuel autonomy
★Thanks to the large fuel tank capacity, the compressors can run for a full work shift without the need for refueling – even under 100% full load conditions
Low noise level
★All components are houses inside a custom designed noise-dampening canopy.
General Construction
For the demolition for building and road maintenance, compressed air is essential on the job site to power the tools. Liutech offers compressor in a wide size of range to fit air flow and pressure requirements of the job — all designed to be robust and reliable to meet the needs of tough, demanding construction environments.
APPLICATIONS: On construction sites, Liutech portable air compressors are typically used to power hand-held pneumatic breakers, jack hammers, air guns, shotcrete equipment, pneumatic wrenches, nut runners and more.
They are commonly used in applications such as building sites, road maintenance, bridges, tunnels, concrete pumping and shotcreting. RECOMMENDED MODELS： LUY050-7, LUY120-7, LUY085-14, LUY100-10, LUY130D-7 Nominal Working Pressure： 7~14bar (100~205psi) Free Air Delivery Range：5~13m3/min (176 ~460cfm) Maximum Ambient Air Temperature: 50 ˚C (122 ˚F)
Ground Engineering Drilling
Dimension stone quarries, stabilization projects and foundation excavation demand equipment that can stand up to hot, dusty working conditions. Liutech compressors are designed to do just that. High-performance engines deliver the power margin to work in tough environments. Large fuel tanks allow uninterrupted operation for a full work shift. Plus, an oversized cooler pack helps ensure reliable performance in high ambient temperatures. The compressor controller, plus electrotonic engine, makes the user experience more easier, more convenient and faster. Improving working efficiency.
APPLICATIONS: Liutech compressors provide portable power for pneumatic rock drills, block cutters, dewatering pumps and hand-held pneumatic breakers. They are suited for stabilization projects on roads and building sites, as well as basement and foundation excavation for apartment blocks and other buildings. RECOMMENDED MODELS: LUY120-7,LUY135D-13,LUY130D-7,LUY130D-10,LUY120-14,LUY150-15,LUY160-17,LUY238D-14,LUY280D-8.5 Nominal Working Pressure: 7 to 17 bar (100 to 250 psi) Free Air Delivery Range: 12 to 28 m3/min (400 to 988 cfm) Maximum Ambient Air Temperature: 50 ˚C (122 ˚F)
Utility, Abrasive Blasting
For large abrasive blasting jobs in shipyards and industrial sites, robust equipment is a must. Demanding pplications such as sand blasting ships and steel require a high volume of air and equipment with which allowed you to extend working hours. Liutech compressors are the perfect match, with a range that’s suited to different blasting nozzle applications. Large fuel tanks also allow long periods of uninterrupted operation, and an after-cooler option is available for moisture-free operation in dry ice blasting applications.
APPLICATIONS: Liutech compressors are suitable for abrasive blasting applications such as deburring and preparing surfaces for painting, anodizing, welding and other processes that require a clean surface. They are often used on shipyards, steel construction and large renovation jobs. RECOMMENDED MODELS:
LUY100-10, LUY100-12,LUY120-7,LUY200-10, LUY220-8 Nominal Working Pressure: 7 to 10 bar (100 to 150 psi) Free Air Delivery Range: 10 to 22 m3/min (350 to 777 cfm) Maximum Ambient Air Temperature: 50 ˚C (122 ˚F)
Blast Hole Drilling
Blast hole drilling jobs are often located in tough, remote areas. These conditions require rugged equipment that’s up to the task – Liutech has the solution. Liutech compressors feature high-power engines to run reliably in high and low temperature environments along with high-altitude starting aid options. Large fuel tanks allow extended periods of uninterrupted operation. The machine's controls and components are easy to use and service, providing maximum uptime.
APPLICATIONS: Liutech compressors provide portable power for rock drills, dewatering pumps and hand-held breakers. Common applications include aggregate production for construction stabilization, cement production in limestone quarries and open pit mining. RECOMMENDEDMODELS:
LUY120-14,LUY160-17,LUY180-19,LUY220D-21,LUY250D-21,LUY290D-21 Nominal Working Pressure: 14 to 21 bar (205 to 300 psi) Free Air Delivery Range: 12 to 29 m3/min (423 to 1023 cfm) Maximum Ambient Air Temperature: 50 ˚C (122 ˚F)
High Pressure Drilling
Water wells and geotechnical applications that require very deep drilling depend on high-powered air compressors to drive the drill rig. Liutech compressors are designed to get the job done. They feature an efficient, fast-reacting speed regulator that delivers consistent outlet pressure for stable hammer/drill operation and a high penetration rate. High pressure air ensures faster operation, while high flow ensures performance in large drill diameter applications. High ambient temperature operation is standard for reliable performance in demanding conditions, job after job.
APPLICATIONS: The Liutech range is suitable for Down The Hole (DTH) and rotary drilling, offering a comfortable operating zone for drill hole diameters from 4.5 to 15 in (114 to 381 mm). Common applications include drilling for water wells and foundations for high-rise buildings, along with geotechnical/geothermal applications. High Pressure Drilling RECOMMENDED MODELS: LUY180-19,LUY310-25,LUY390-25,LUY390-30, LUY340-34 Nominal Working Pressure: 19 to 34 bar (275 to 495 psi) Free Air Delivery Range: 18 to 39 m3/min (635 to 1376 cfm) Maximum Ambient Air Temperature: 50 ˚C (122 ˚F)”
