Truck Mounted Water Well Drill Rig BZCDF200DF

Regular price: $10,000.00
Sale price: $10,000.00
Regular price
Unit price: per

Quantity

Quantity must be 1 or more

Customized products, please inquire before placing an order.

BZCDF200DF reverse circulation drilling rig 200m drill depth 500-2500mm drill diameter

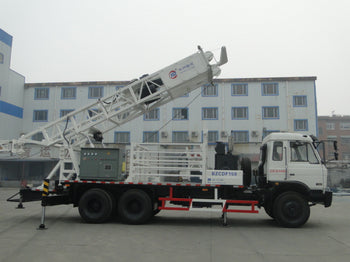

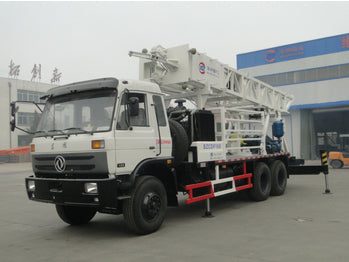

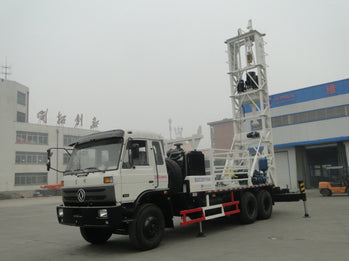

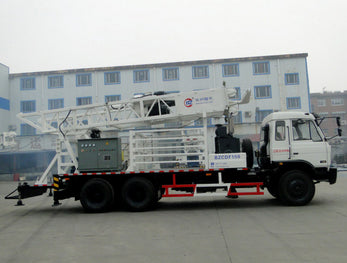

BZCDF200DF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 6X4 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis.

Mail Feature:

1.BZCDF200DF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 6X4 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis;

2.The motive power comes from the truck engine, with 120KW generator and external power system. So the rig can work with truck engine or external power and is a electromechanical、hydraulic、pneumatic controlled rig ;

3.The rig uses mud as the flushing liquor with 6BS gravel pump to drill; the equipped CB—E532vacuum pump system provides water for the gravel pump.

4.The rig equips with hydraulic system, hydraulic tower, hydraulic supporting legs.

5.The drill pipes is screw thread joint, with special unloading device, easy to change the drill pipe.

6.The appearance of rig is pretty; it has a high efficiency because of having larger torque; it is suitable for water well engineering, construction, building, bridge foundation, port, dam and so on; it is popular with the domestic and foreign clients.

BASIC TECHNICAL：

Technical parameter
Drill depth(m)			200
Drill diameter(mm)			500-2500
Top head speed(r/min)			22
Top head torque(kN.m)			7.5
Total line pull force of minor winch(t)			18
Tower hight(mm)			6980
Bearing (t)			20
Drill pipe(mm)			Ф168×8×2000
6BS gravel pump	theoretical flow(L/min)		560
	Revolving speed(r/min)		750
	Input power(kw)		55
CB—E532 vacuum pump	Max-displacement(L/min)		3400
	Revolving speed(r/min)		1450
	Input power((kw)		7.5
Engine	Diesel engine	model	YC6J180-33
		Rated power(KW)	132
		speed(r/min)	2500
		torque	590N.m/1400-1700rpm
Drive form of chassis	6×4
Generator set	Rated power(kW)		120
	Rated voltage (V)		400
	frequency （Hz）		50
Walking speed(km/h)			75
Transport dimension (L×W×H)(mm)			1014724803926
Working dimension (L×W×H)(mm)			995436908852
